Zip Location is 60803 – (15 miles South-West from Chicago, IL).

Delta 16 – Inch Wood – Metal Band Saw with manual included

Model / Part #419-96-651-0002 / Cat #28-560 In great condition.

Runs like a quite tank with no wobbling, jittering or any thing like that.

(There are some replacement parts which are included with the manual such as an extra rubber tire for any of the 7” Dia wheels, ½” Bolts & nuts with 1 – ½” screws & a hex key wrench and last but not least, a miter gauge.)

Machine has been cleaned up inside and outside. Some places inside of the machine might have been somewhat difficult to get into (for a brush to reach) but wouldn’t pose any problems on how the machine will perform its work. Cutting table has been brushed up with most parts oiled.

Where to find replacement parts:

Uses between 82” x 1/8” wide up to 80” – 3/8” wide Saw blades and 82” x 40 Fine grit & 82” x 80 Medium Grit sand blades .

(You can buy replacements at your local store that sells Delta tools or go to www.deltamachinery.com).

You can also try http://www.deltamachinery.com/index.asp?e=107 to search for a Delta dealer in your area.

If you want to look for saw/sand blades type or go to

http://www.deltamachinery.com/index.asp?e=139&p=1442 for blades, 28-564, 28-565,

28-566, 28-567, 28-568 & 28-580.

As a last resort, type   “82" BANDSAW BLADES” AT www.google.com search box.

Here is a chart on what each blade can do: (As stated in the manual)

#1. For all wood and light, non-ferrous metals (Cuts to ¼” radius.)

Blade # 28-565.

Blade Width = 1/8”.

Blade Thickness = .018”

Teeth per inch = 15.

Type = Fine Scroll.

#2. For all wood and light, non-ferrous metals (Cuts to 1/2” radius.)

Blade # 28-566.

Blade Width = 3/16”.

Blade Thickness = .020”

Teeth per inch = 6.

Type = Skip Tooth.

#3. For all wood and light, non-ferrous metals (Cuts to 7/8” radius.)

Blade # 28-567.

Blade Width = 1/4”.

Blade Thickness = .020”

Teeth per inch = 6.

Type = Skip Tooth.

#4. For coarse, soft woods and wood ½” and thicker. (Cuts to 1-1/2” radius.)

Blade # 28-568.

Blade Width = 3/8”.

Blade Thickness = .020”.

Teeth per inch = 4.

Type = Skip Tooth.

#5. For cutting most steel and foundry metals, less than 1” thick.

Blade # 28-571.

Blade Width = 3/8”.

Blade Thickness = .020”

Teeth per inch = 24.

Type = Metal Cutting.

#6. For cutting most steel and foundry metals, 1” thick and over.

Blade # 28-572.

Blade Width = 3/8”.

Blade Thickness = .020”

Teeth per inch = 18.

Type = Metal Cutting.

About speed ratio:

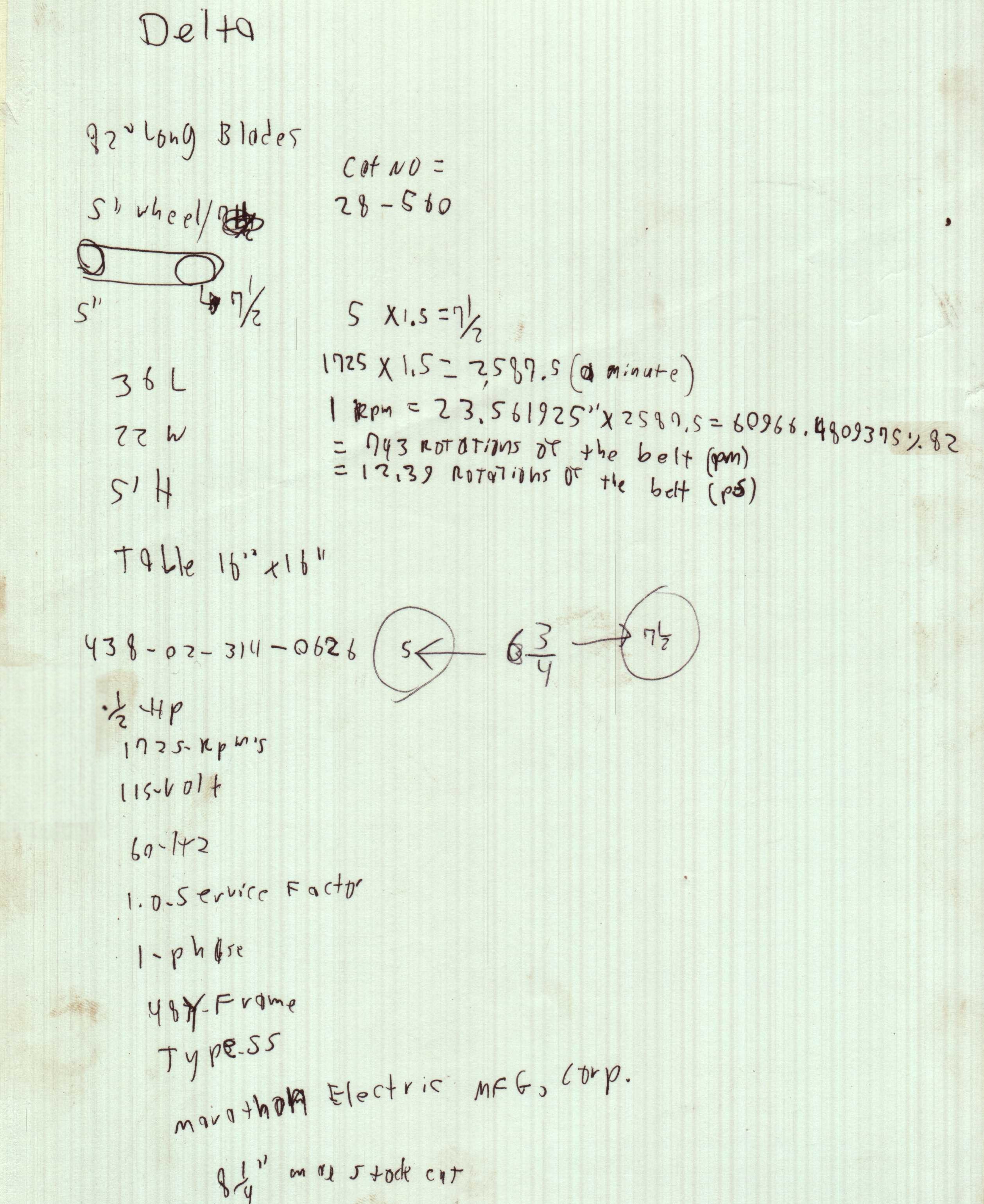

If the drive belt for cutting metal was being used, the blade would be passing about 66.08 -/+ 2 times through the blade guide every minute at the speed of 230 r.p.m’s. (2/15 of the speed being distributed from the 1725 r.p.m’s motor when using the 1” Dia drive shaft connected to the 7 – 1/2” Dia. blade drive wheel.)

Unfortunely, that belt for metal cutting didn’t come with this item when it was originally purchased because it was considered is an optional accessory at the time.

It is a drive belt # 419-96-133-0002. (That belt is 28” Long x 1” Wide & 1/8” Thick)

If the drive belt for cutting wood was being used, the blade would be passing about 247.83 -/+ 4 times through the blade guide every minute at the speed of 862.5 r.p.m’s. (1/2 of the speed being distributed from the 1725 r.p.m’s motor when using the 5” Dia drive pully connected to the 7 – 1/2” Dia. blade drive wheel.)

Machine’s general dimensions:

5 Feet High,  (From the four feet to the top of the guide bar)

22” Wide, (From side to side of the feet from left to right).

36” From the edge of the rear/back feet to the front edge of the cutting table (Ortho measure).

Weighs around 152 – 161 Pounds.

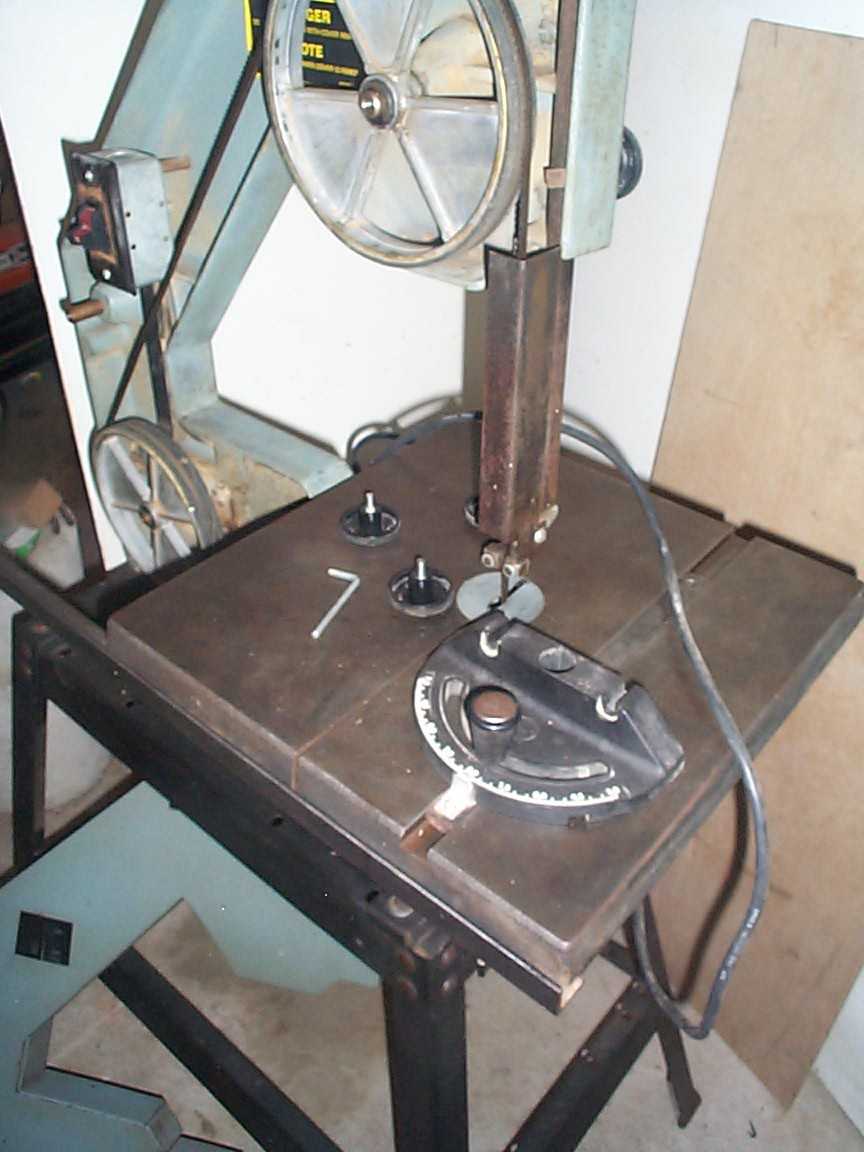

Table dimension are 16” long from rear edge to the front edge and 16” wide made out of cast iron.

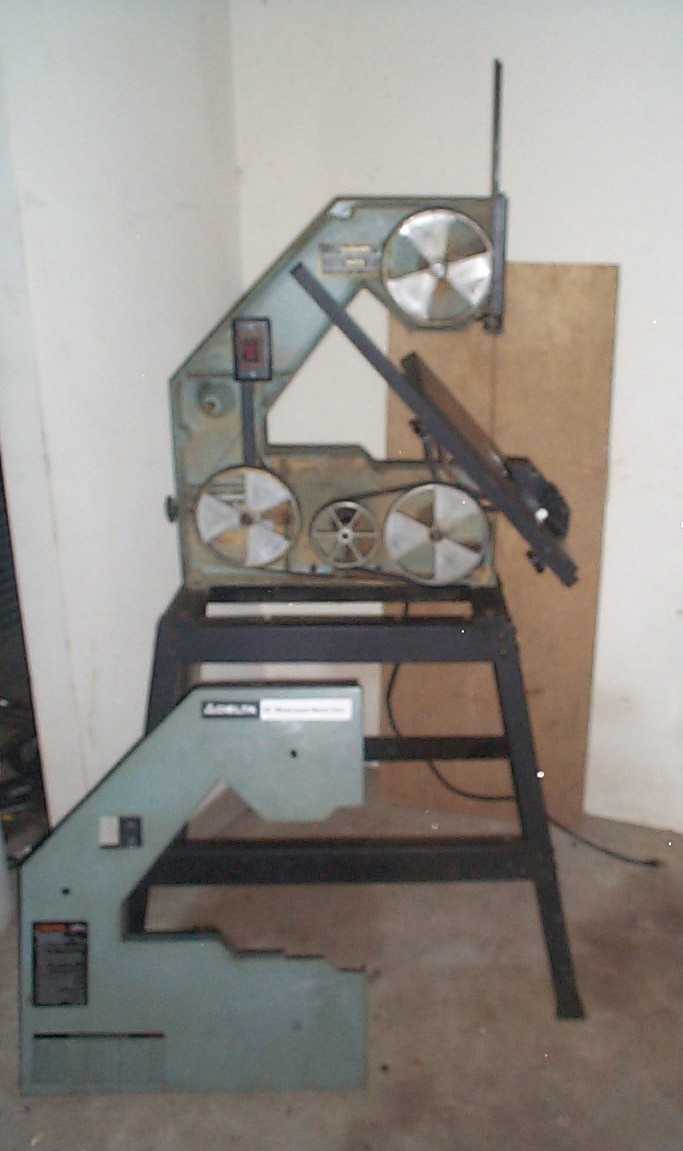

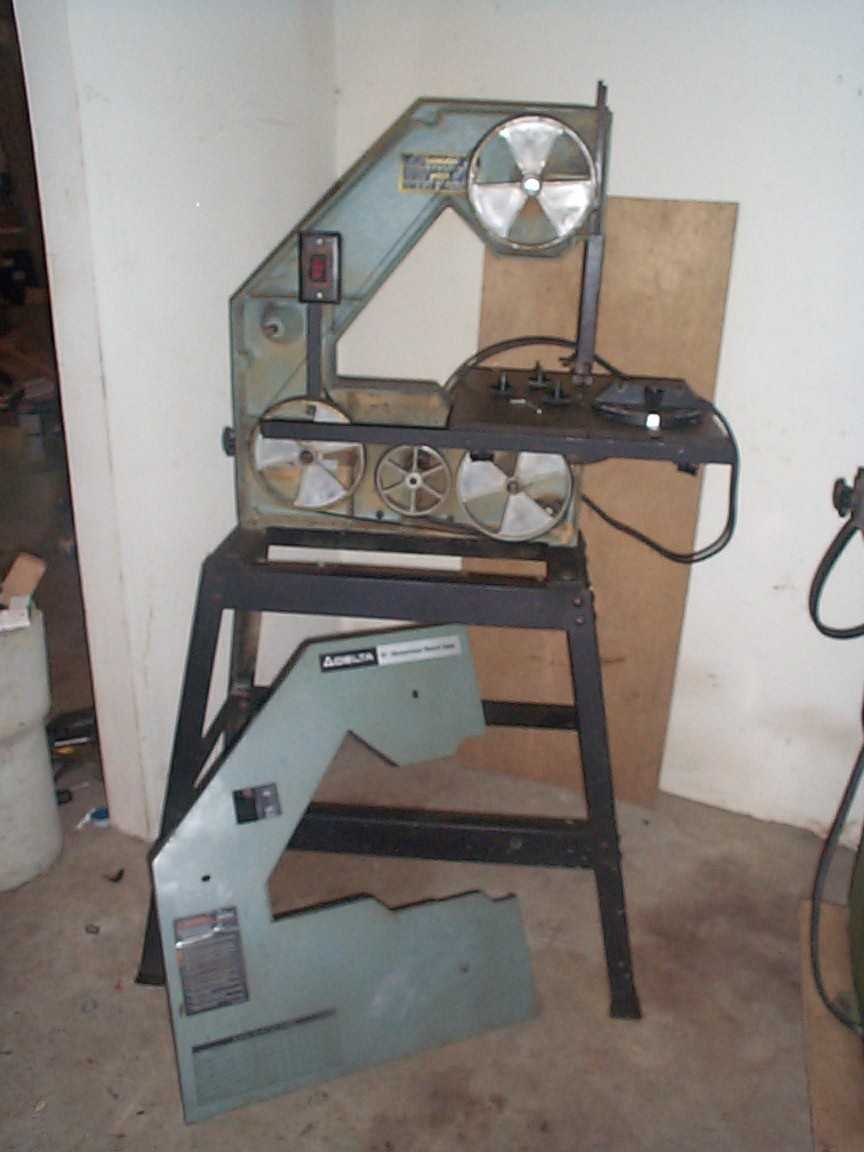

In the one picture where the cover is off, that’s how the saw table appears when it is tilted at its 45 degree angle when you use its built-in plastic wing nut to adjust displayed in another picture.

Throat is 16 – 1/4” max.

Max stock thickness under the blade guide is 8 – ¼” when blade guide is pulled up at its maximum height.

Overall color is Light-Sky blue/Gray and deep smoky black-gray lower section.

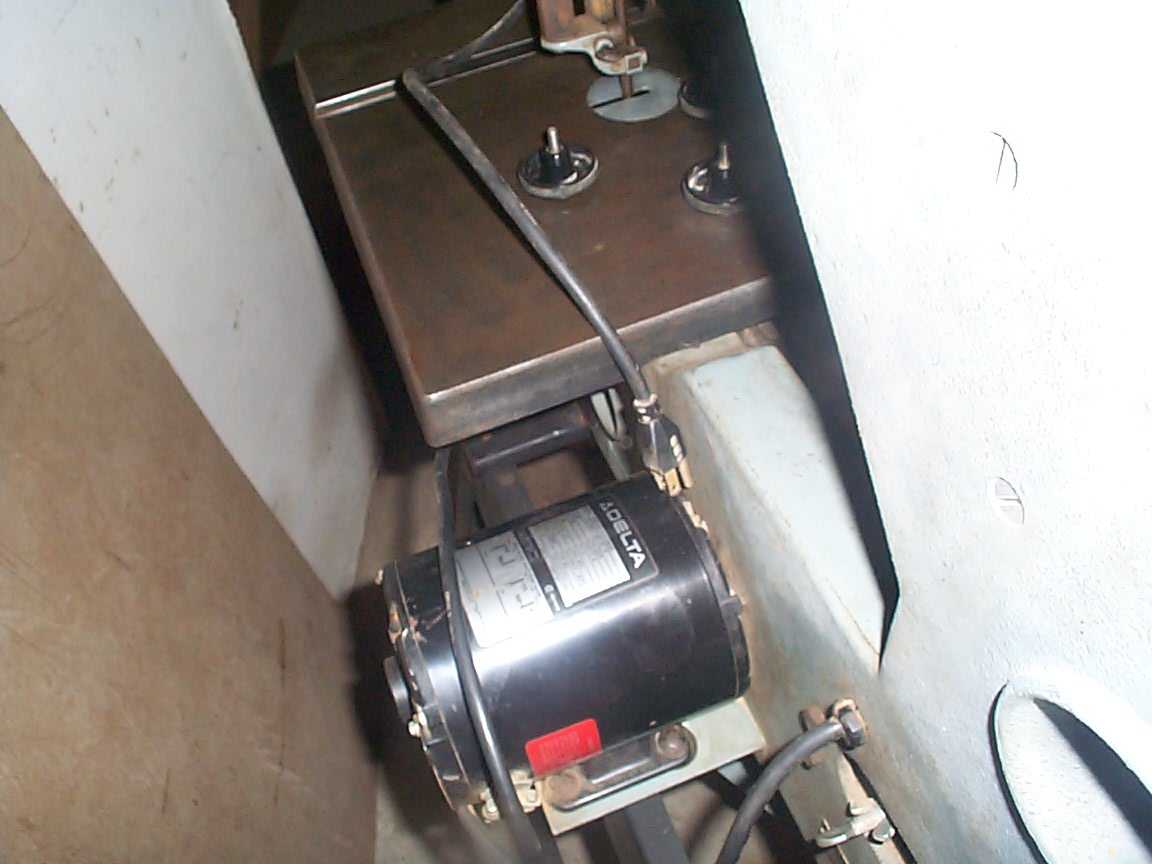

About the motor.

It is a Delta motor manufactured by Marathon Electric manufacturing (Stated on label).

Its model / part # 438-02-314-0626

Single Phase

Runs on 110 Voltes of AC Power @ 60 cyc/hzts. (Band saw is Grounded)

½ Horse.

7.4 amps @ 120 Volts.

Frame/body of motor is 48Y.

Also comes with an “L” wrench. (To remove pulleys and other parts)

Starting bid at $85.00.

About the manual, as how the band saw performs its work, what is in the picture is what I am selling. Another words, any accessories that were suppose to come with the band saw stated in the manual wouldn’t be in this sale such as the rip fence because that item was damaged or missing.

Replacement parts? You can go to www.deltamachinery.com for help or type in “Rip Fence” in their search box and click on that first selection.

Feel free to contact me.

 You may purchase/pay using your,

Paypal (Instant pay to clear) account,

credit card (1 – 2 working days to clear) or....

check (4 – 6 working days to clear)

       I’ll email you (the winning bidder) when funds are cleared for pickup.



                                                                             Thanks, Derek
