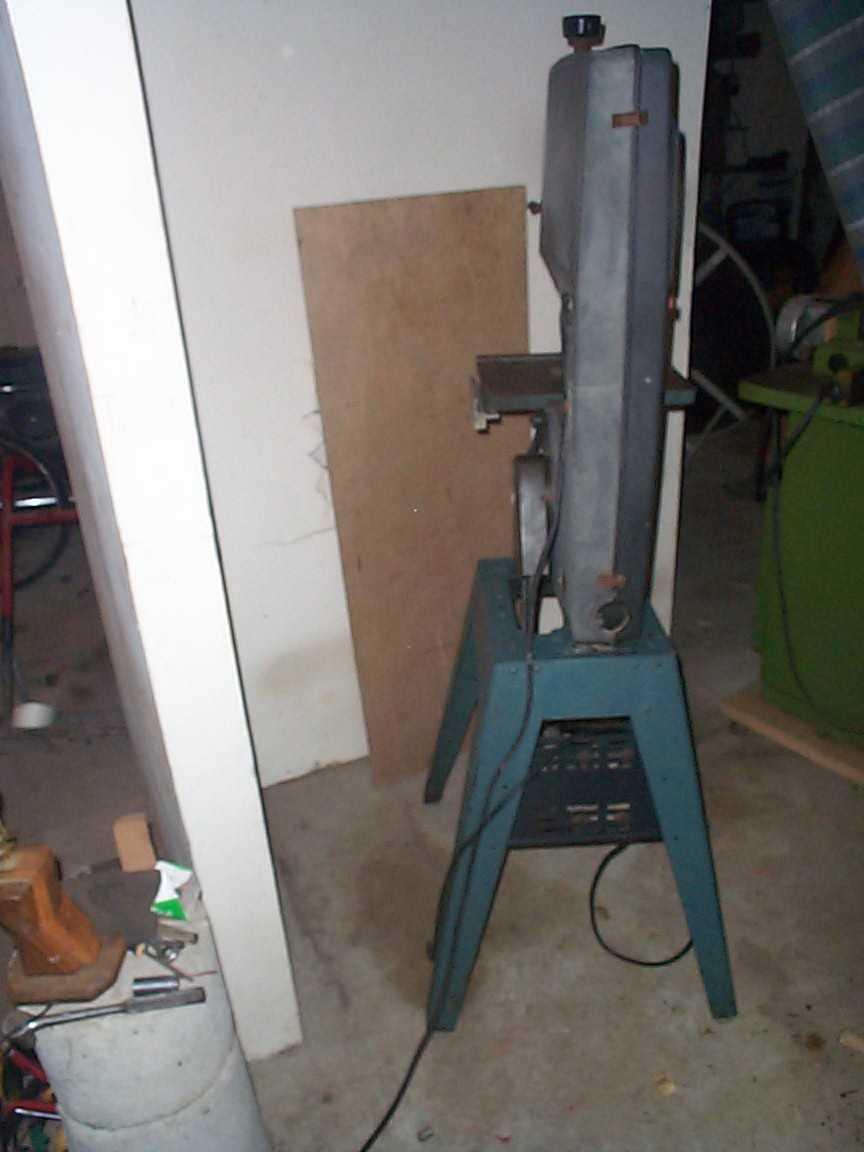

Sears Craftsman 12" Inch Band Saw w/ Stand & Manual

Zip Location is 60803 – (15 miles South-West from Chicago, IL).

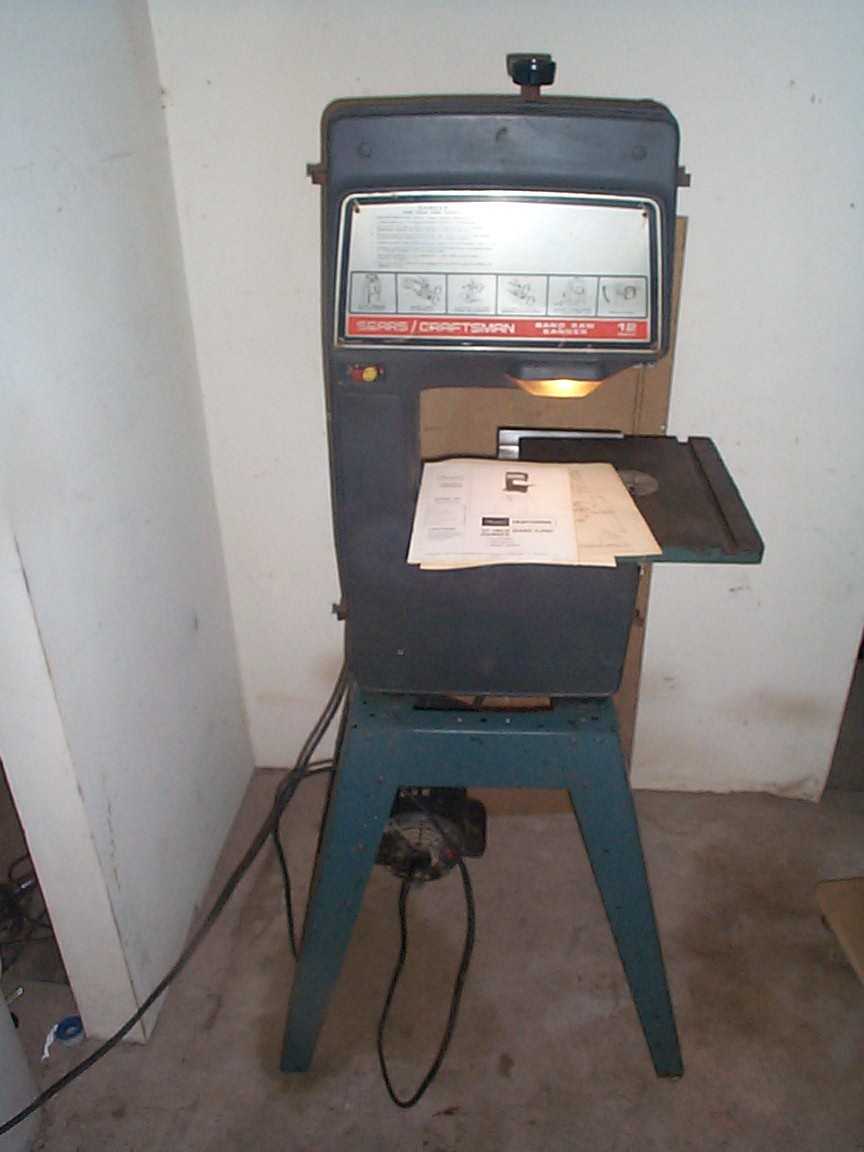

Sears Craftsman 12 – Inch Band Saw – Sander with manual included

Model #113.24350

In great condition.

No squeaks, runs pretty quite.

 (There is another manual which also comes with this item. That manual is for the leg set the Sears Craftsman 12” Band Saw / Sander is bolted onto in the picture.

Machine has been cleaned up inside and outside. Some places inside of the machine might have been somewhat difficult to get into (for a brush to reach) but wouldn’t pose any problems on how the machine will perform its work. Cutting table has been brushed up with most parts oiled.

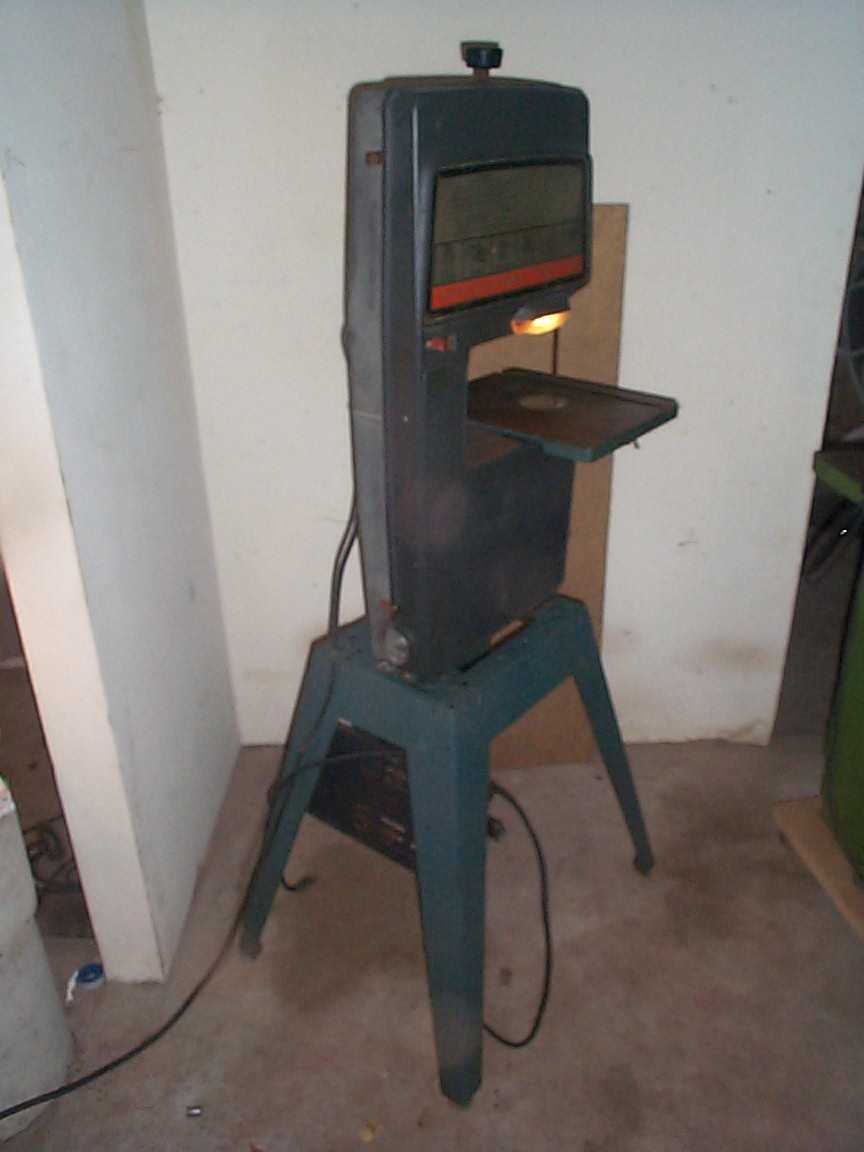

It’s has a built-in task light using 15 Watts or more.

Light does unscrew at half-a-turn counter-clockwise and simply pulls out if you want to use a higher/lower wattage bulb for more/less Illumination.

Also comes with 90 degree only miter gauge.

Where to find replacement parts:

Uses between 80” x 1/8” wide up to 80” – ½” wide blades. (You can buy replacements at your local Sears Store or at www.sears.com).

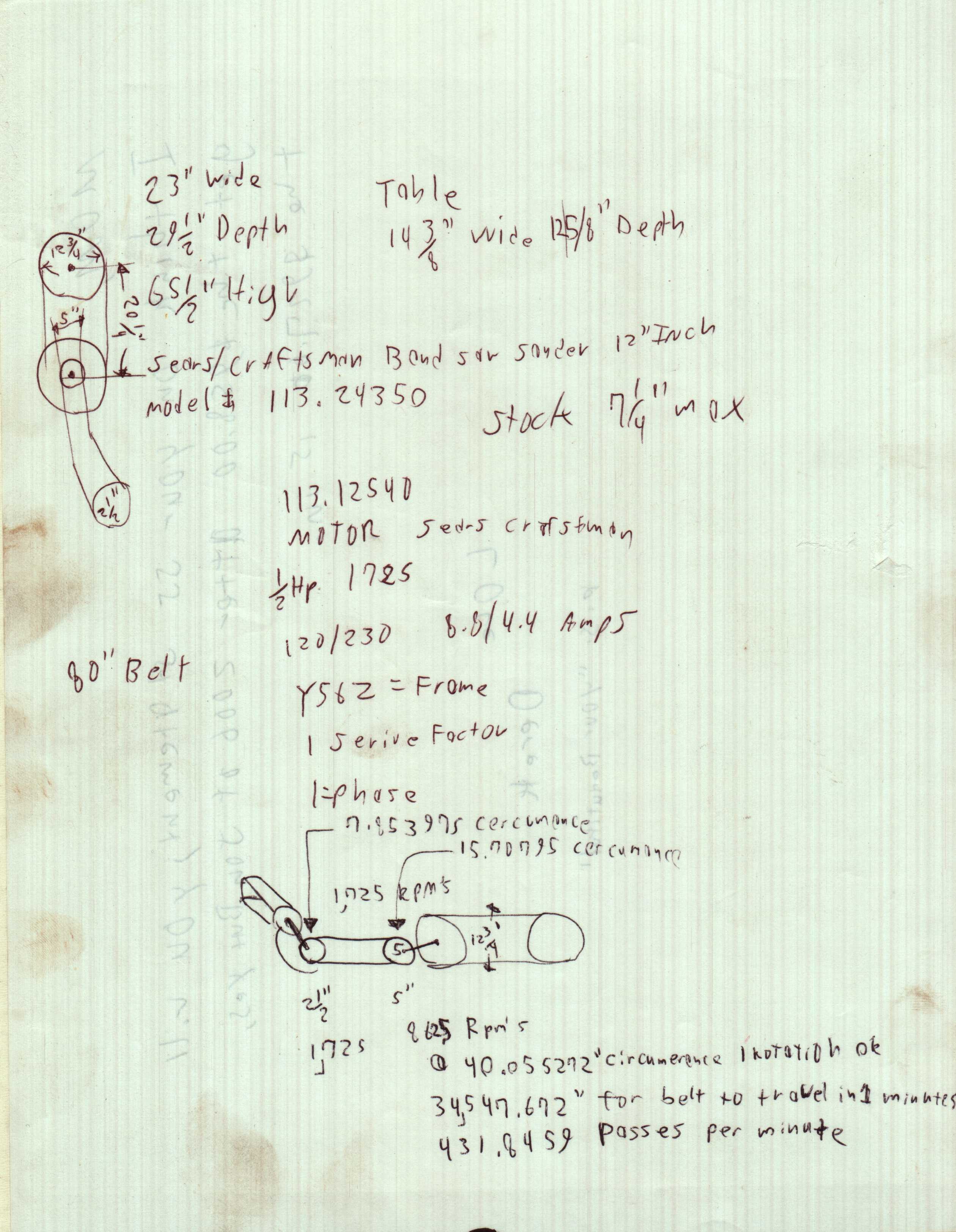

Belt passes about 431.85 -/+ 5 times through the blade guide every minute and runs at single speed.

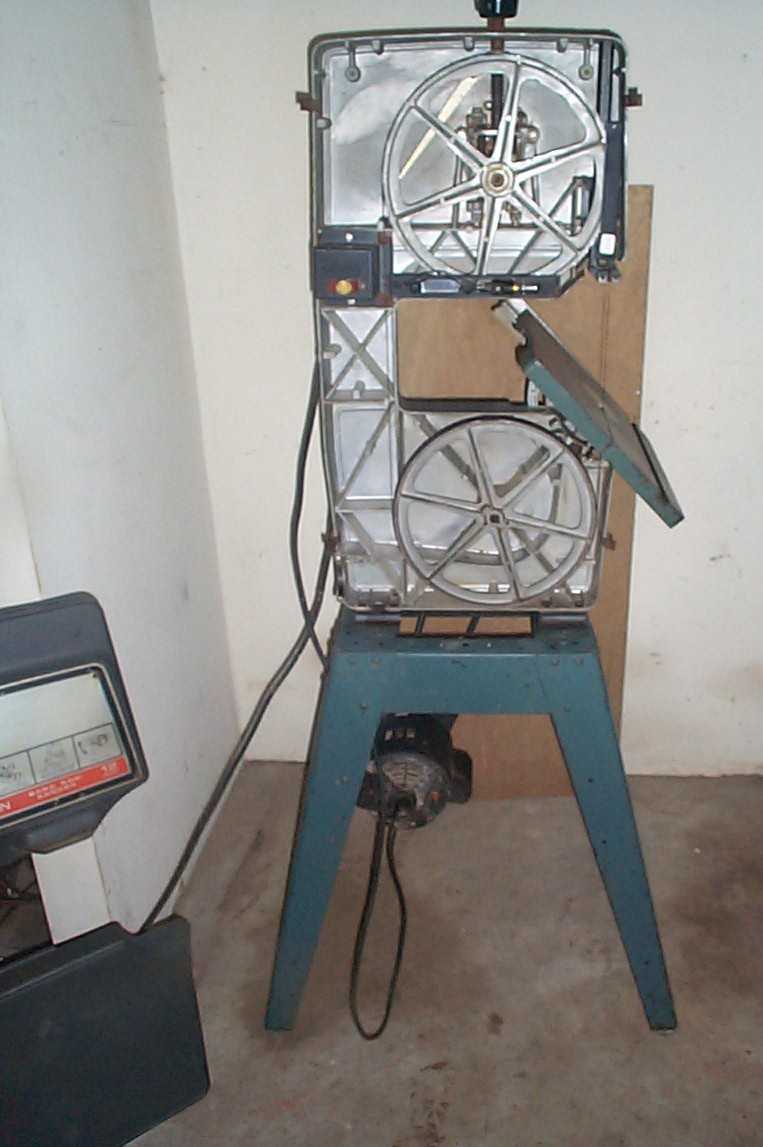

R.P.M.’s on the motor is 1,725. The motor shaft goes to a 2 – ½” Dia pulley. That pulley is connected to 5” Dia pulley using the 1/2” Wide x 52”/43” Long V-belt. 5 divided by 2.5 or 2 – ½” = ratio of 2:1. The pulley connected into the bottom belt reel rotates at half of the speed of the motor causing the R.P.M’s to be 862.5. In the one picture that has the cover off, there are two reels. Both reels rotate clock-wise about 862.5 rotations per minute or 14.375 rotations per second.

Machine’s general dimensions:

6 Feet High,  (From the four feet to the top of the tension knob)

19” Wide, (From side to side of the feet from left to right).

30” From the edge of the rear/back feet to the front edge of the cutting table (Ortho measure).

Weighs around 132 – 147 Pounds.

Table dimension are 12 – 5/8” long from rear edge to the front edge and 14 – 3/8” wide made out of cast iron.

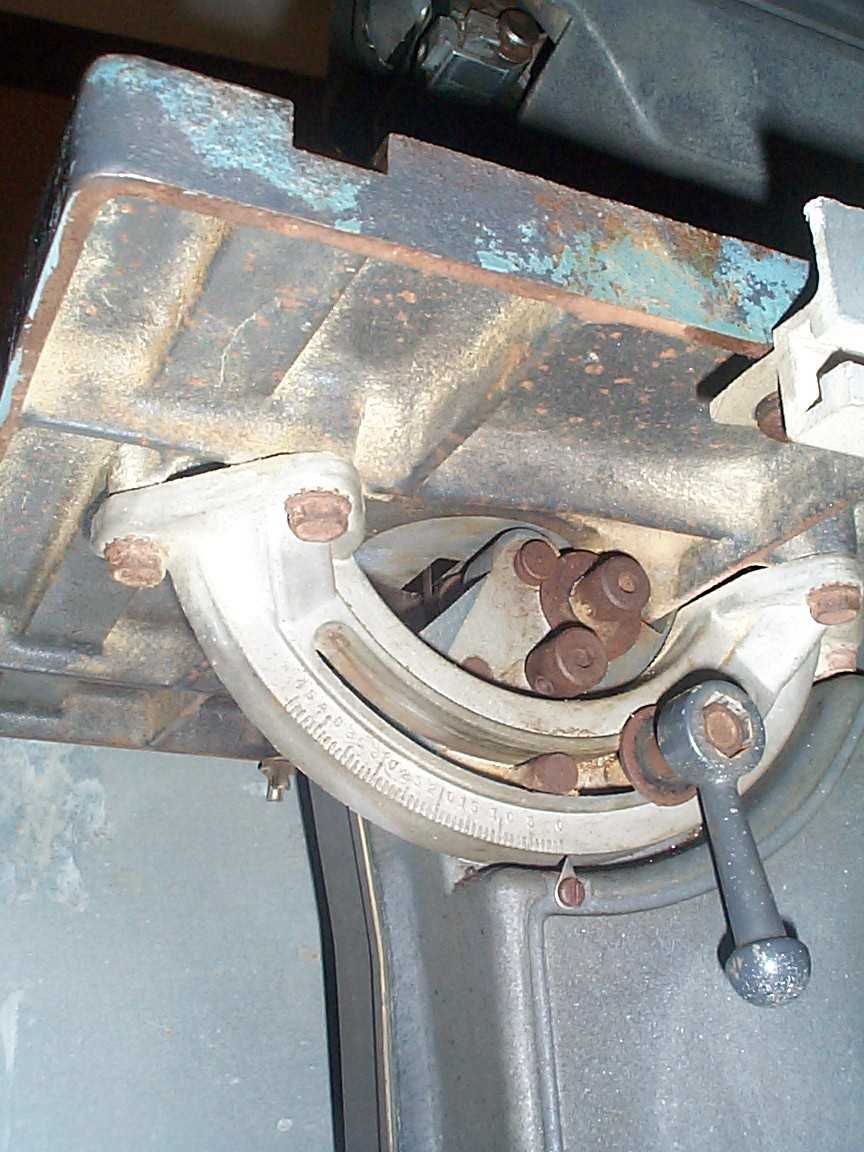

In the one picture where the cover is off, that’s how the saw table appears when it is tilted at its 45 degree angle when you use its built-in lever wrench to adjust displayed in another picture.

Throat is 12 – 1/8” max.

Max stock thickness under the blade guide is 7 – Ό” when blade guide is pulled up at its maximum height.

Overall color is Dark blue left and deep smoky black-gray upper section.

(Base itself is 28” high and is compatible for other sears machines to be bolted on it)

About the motor.

It is a Sears motor (Stated on label).

Its model # is 113.12540

Single Phase

Runs on 110 Voltes of AC Power @ 60 cyc/hzts. (Band saw is Grounded)

½ Horse.

8.8 / 4.4 amps @ 120 / 230 Volts.

Frame/body of motor is Y56Z.

Also comes with an “L” wrench.

Starting bid at $75.00.

About the manual, as how the band saw performs its work, what is in the picture is what I am selling. Another words, any accessories that were suppose to come with the band saw stated in the manual wouldn’t be in this sale such as the corner elbow for sawdust exhaust & the “L” wrenches because they unavailable or missing. Yes, switch is key operated for child protection.

Replacement parts? You can go to www3.sears.com and type in “113.24350” in the box for search for models then, go from what the following instructions would ask you if you would like to order other parts for it after you win the bid.

Feel free to contact me.

You may purchase/pay using your,

Paypal (Instant pay to clear) account,

credit card (1 – 2 working days to clear) or....

check (4 – 6 working days to clear)

 I’ll email you (the winning bidder) when funds are cleared for pickup.

                                                                             Thanks, Derek
