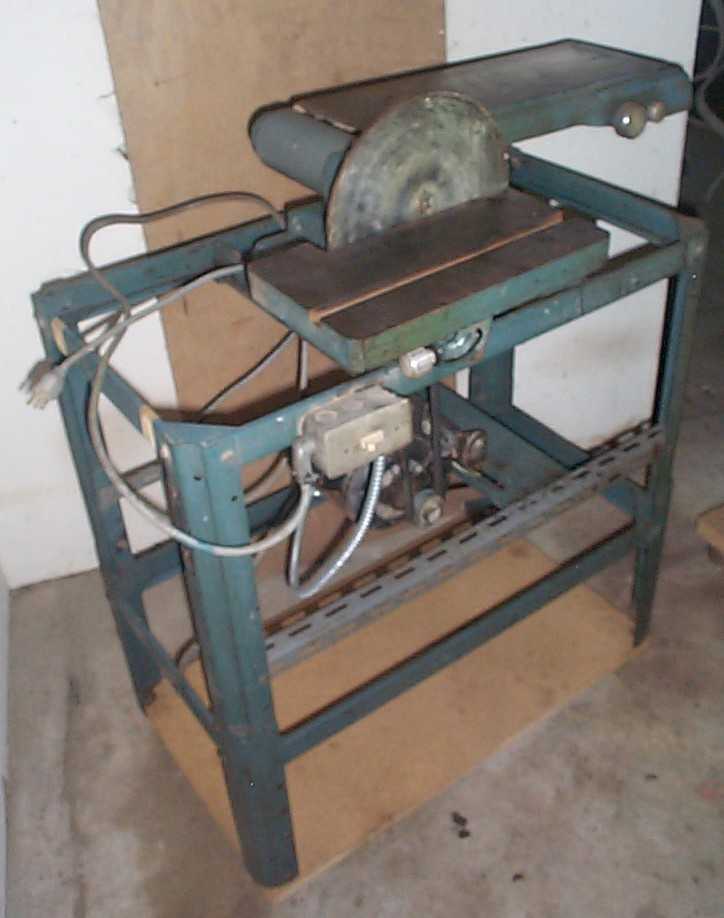

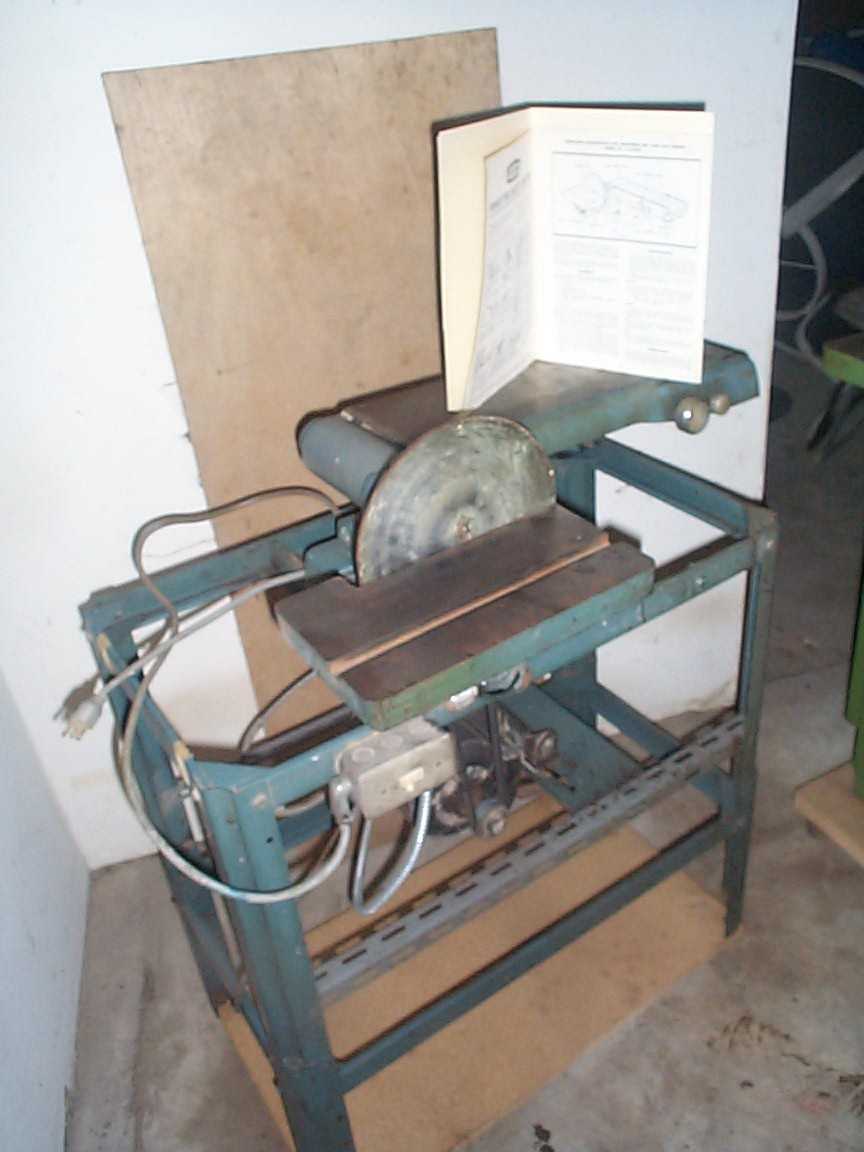

Sears Craftsman ½ Horse
6 Belt 9 Disk Sander, table & manual included
Model #113.22541
In pretty good
condition.
Strong study
steel/cast iron construction with very little rust or no rust at all.
(There might be some tiny
rust pit marks under the work table and motor but, will not effect the
performance of the disc sander at all)
You can roll the machine on four
Smooth 7/8 wide x 2 Dia steel Caster wheels.
Easy to roll.
The belt table:
The belt table can be
rotated and adjusted up to 90 degrees to the left if you
want the belt table to run vertical using a wrench to loosen / tighten two
½ hex bolts.
Requires 48 long x
6 wide sand paper. (At your local Sears Store)

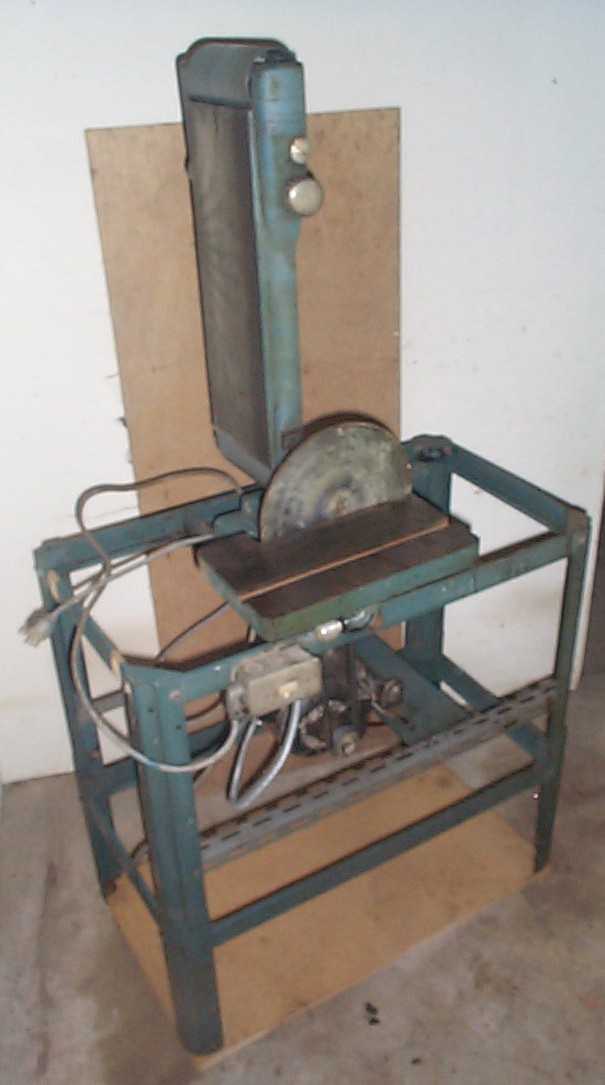

Vertical position shown in
another picture (with-out fence in place).
Speed:
R.P.M.s are 1.5 ratio
from the motor.
If the motor runs at 3,450
RPMs with its 2 pulley connected to its motor shaft and the belt is
connected to its 3 Dia disk/belt sander pulley, the RPMs would be
around 5,175.
About the body
dimensions/weight of the disc sander:
43 High From
the floor to the top edge of the 9 disc itself or
59-1/4 High From the floor to the top edge of the idler pulley
(If belt table was vertical) *
* = with the disc sander
bolted on the board with its caster wheels.
(3-3/16 High).
32 Wide From
the left edge of the machine to the right edge of the idler pulley.
22-1/2 Depth
From the rear edge of the disc sander to the front edge of the disc
sanders sanding table.
Weight is around 122
Pounds -/+ 3 pounds.
Disc sanding table:
Disk is 9 Dia. (Disc
paper can be mounted using sand paper glue on the steel disc).
Disc Table can be adjusted
on a 45 degree tilt to the left or right or/and comes
down away from the disc sander.
Table dimension are 11-7/8
wide X 7-1/8 Depth.
Other stuff:
No broken parts.
Comes with a 90 Degree only miter gauge. (Has been added)
Turns off/on left/right
using toggle switch.
Overall color is Dark blue.
Bolted on Ύ
wooden base with four 7/8 Wide x 2 Dia. steel casters.
(3-3/16 High).
(Base itself is 3-3/16
high and included with the disc sander)

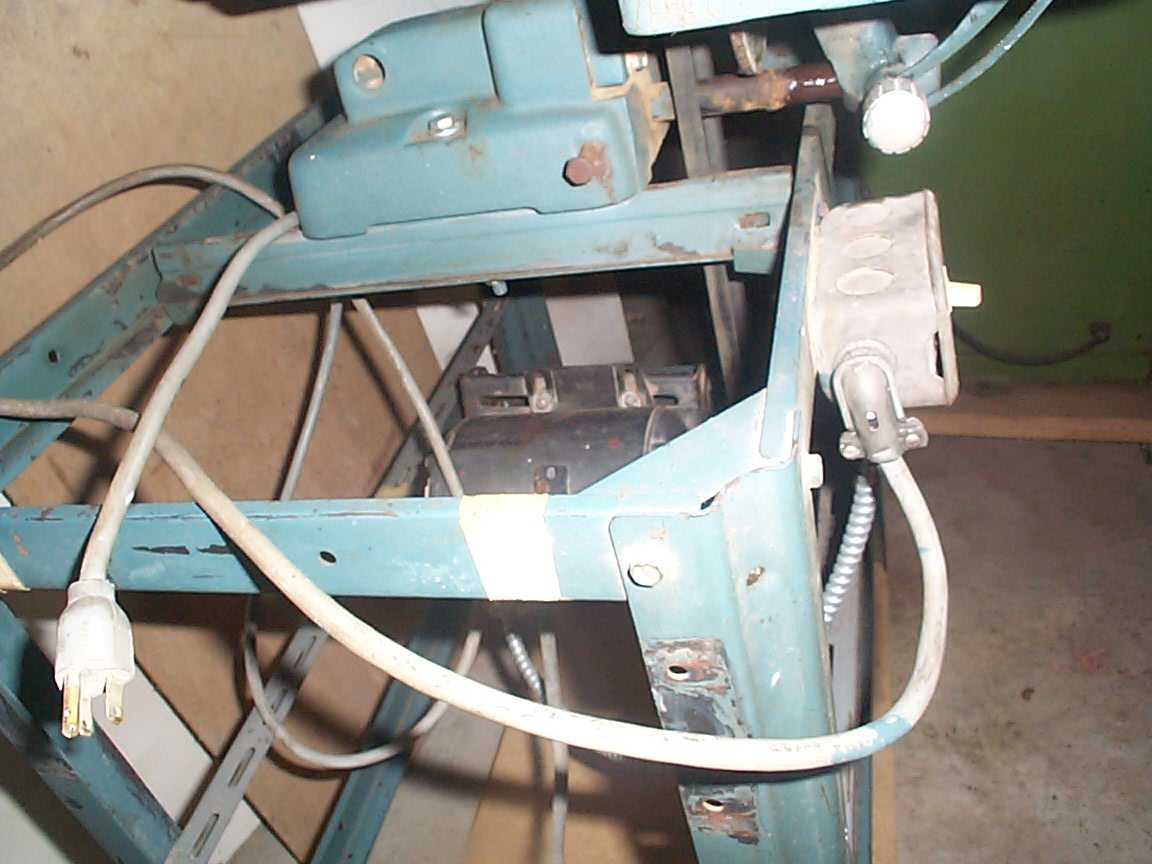

About the motor:
It is a Sears motor (Stated
on label).
Its model # is 113.12180
Electric 3-prong cord
is 8 feet long.
Single Phase
3,450 R.P.M.s
Runs on 110 Voltes of
AC Power @ 60 cyc/hzts. (Disc Sander is Grounded and
rewired)
½ Horse.
8.4 / 4.2 amps
@ 115 / 230 Volts.
Frame/body of motor is C56Z.
Why starting bid is at $75.00.
To compare prices with other
sears Disk Sanders, go to www.sears.com
and type in Disc Sanders at their search and click on the
orange/red icon with white letters marked, go.
Or use the one click shortcut below.
You might notice the one
disc sander for $199.99 before is goes back up to $229.99 after
12/24/2005. (#00922593000) It
is around the equivalent to this one listed however table is also included
my listing too. Might not be fancy looking but, need to sell because of
moving / estate sale &
Might save over $100.00
or more.
Ill will through in,
(Free)
2 pieces of 48 Long x
6 Wide 100 Grit Sanding Belts
(Free @ a $17.00 -/+ $1.00 Value)
2 pieces of 48 Long x
6 Wide 50 Grit Sanding Belts
(Free @ a $17.00 -/+ $1.00 Value)
1 piece of 9 40
Grit Sanding Disc
(Free @ a $1.00 -/+ $.25 Value)
2 pieces of 9 60
Grit Sanding Discs
(Free @ a $2.00 -/+ $.50 Value)
2 pieces of 9 100
Grit Sanding Discs
(Free @ a $2.00 -/+ $.50 Value)
Value on the sand paper was
based on at the Sears website.
I do have other/extra
sanding belts and sanding discs in inventory (for separate cheep pricing),
need to email me for details.
Feel free to contact me and
ask about the Disc Sander.
You may purchase/pay using
your
Paypal (Instant pay to clear) account,
credit card (1 2 working days to clear) or......
check (4 6 working days to clear)
Ill email you (the winning bidder) when funds are cleared for pickup.
Thanks, Derek
|
